The Net Hauler
The hydraulic net hauler handles all types of seine nets, trammel nets and is aimed at deep sea fishing on heavy duty boats. Its got a V shaped, aluminium drum, Ø400mm, width 185mm. The big grooves in the drum gives the hauler great grip which enables easy and safe hauling.
The Line Hauler
The line hauler has got Ø426mm sheaves for rope of sizes:Ø6mm to 12mm. Its got a knife block ejector and a plastic ruler to press down on the rope.
The open block pulley is located at the end of the davit arm and guides the rope straight in to the hauler.
Built in cast marine grade aluminium and stainless steel, it has a hydraulic distributor and a pressure relief valve.

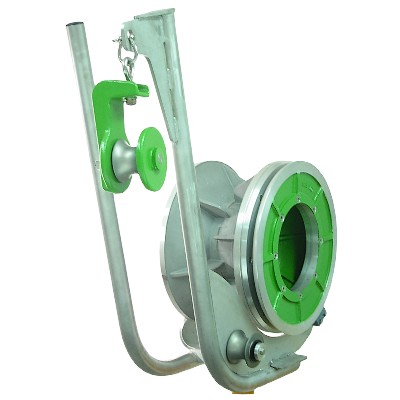

Combined Nets / Pots Hauler 500
- Pull: 300kg (665lbs)
- Speed: 0-70 m/min
- Weight: 51kg (114lbs)
The hydraulic net hauler handles all types of seine nets, trammel nets and is aimed at deep sea fishing on heavy duty boats. Its got a V shaped, aluminium drum, Ø400mm, width 185mm. The big grooves in the drum gives the hauler great grip which enables easy and safe hauling.
The Line Hauler
The line hauler has got Ø426mm sheaves for rope of sizes:Ø6mm to 12mm. Its got a knife block ejector and a plastic ruler to press down on the rope.
The open block pulley is located at the end of the davit arm and guides the rope straight in to the hauler.
Built in cast marine grade aluminium and stainless steel, it has a hydraulic distributor and a pressure relief valve.
Combined Nets / Pots Hauler 500
- Pull: 300kg (665lbs)
- Speed: 0-70 m/min
- Weight: 51kg (114lbs)
